Powered by Yamaha's MZ50; 50cc, air-cooled (fan assist), OHV, 2-valve, 4-stroke, single cylinder engine with electronic transistor controlled (TC) ignition.
Pulse Width Modulation provides super "clean" power. As clean or cleaner than you get from a household receptacle.
Rated AC output for continuous use is 900 watts / 7.5 amps.
Floating neutral
Exclusive dual coil alternator stator provides greater output at a lower engine rpm for reduced noise, improved fuel consumption, and reduced engine wear
Non-fuse type circuit breaker (NFB) prevents internal circuit damage in the event of an over load.
Yamaha's Noise Block body design means ultra quiet performance, one of the quietest in class
Smart Throttle / Economy Control automatically adjusts engine speed to match the load, saving fuel, reducing noise and engine wear.
Manual choke
Yamaha's Oil Watch Warning System helps prevent engine damage from low oil. If the oil drops to a certain level, the engine will automatically stop and will not re-start until oil is added.
Indicator lights for AC power output, low oil and AC overload.
Cleanable spark arrestor stops the possibility of sparks exiting the exhaust.
Washable foam air filter reduces maintenance costs
12 Volt DC output and cables for charging RV, auto and marine 12-volt batteries.
On-off fuel petcock lets you shut off the gas to run the carb dry for storage, helping to prevent stale fuel problems, which are becoming more common with ethanol based fuels.
Large fuel filler hole and sealable vent on gas cap for easy filling and transporting.

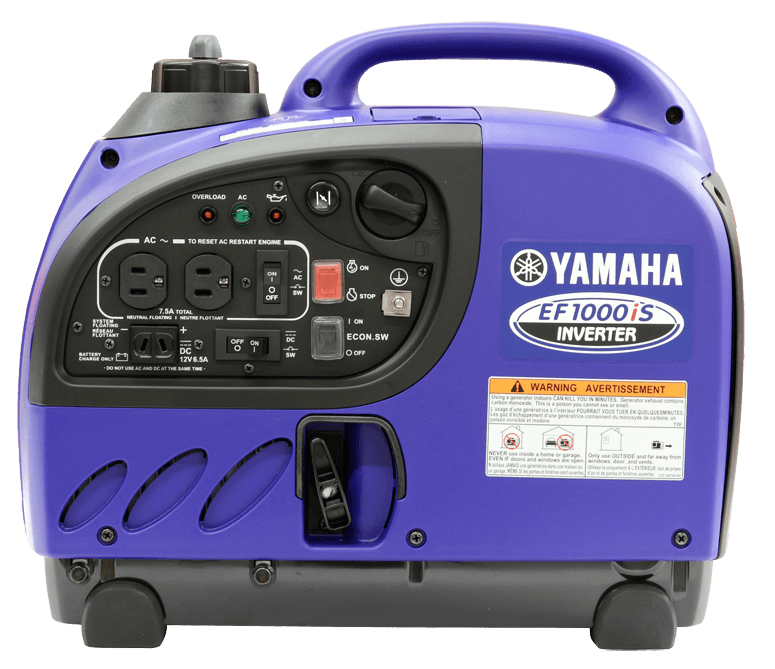

Suitcase style handle and light weight (13 kg / 29 lb) make the EF1000iS very portable.
CSA approved (Canadian Standards Association)
EPA & CARB Emission Engine Durability Rating. Yamaha generators have the longest emission engine durability ratings issued by the Environmental Protection Agency and the California Air Resources Board.
3-year "residential / home" use or 2-year "commercial use" factory warranty.
Type
Inverter
Maximum AC Output
1000 watts
Rated AC Output
900 watts
Rated / Maximum AC Current
7.5 /8.3 amps @ 120V
Voltage Stability
± 1%
Frequency Stability
± 0.1 HZ
Engine
OHV, air-cooled, single cylinder, 4-stroke
Displacement
50cc
L x W x H
17.7 x 9.4 x 14.9 in
DC Output
8 amps @ 12V
Dry Weight
27.9 lb
Fuel Tank Capacity
0.66 gal
Continuous Operation at 1/4 Rated Load
11.9 hr
Noise Level (1/4 Load - Rated Load)
47- 57 dBA
Engine Speed @ 1/4 Load
3000 rpm
Battery Charge Cord
Included
Warranty
3 Years Limited Warranty (except commercial/rental use = 2 year warranty)
